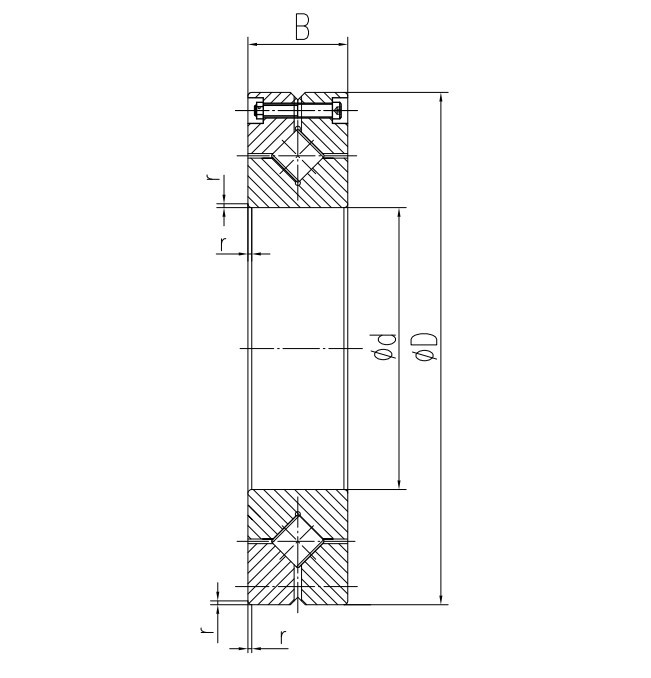

| 外形尺寸(mm) | 基本負(fù)荷(KN) | 重量(KG) | | d | D | B | rsmin | 動 | 靜 |
| 30 | 55 | 10 | 0.3 | 7.35 | 8.36 | 0.12 |
| 40 | 65 | 10 | 0.3 | 8.33 | 10.6 | 0.15 |
| 50 | 80 | 13 | 0.6 | 16.7 | 20.9 | 0.29 |
| 60 | 90 | 13 | 0.6 | 18 | 24.3 | 0.33 |
| 70 | 100 | 13 | 0.6 | 19.4 | 27.7 | 0.38 |
| 80 | 120 | 16 | 0.6 | 30.1 | 42.1 | 0.74 |
| 90 | 130 | 16 | 1 | 31.4 | 45.3 | 0.81 |
| 100 | 150 | 20 | 1 | 33.1 | 50.9 | 1.45 |
| 110 | 160 | 20 | 1 | 34 | 54 | 1.56 |
| 120 | 180 | 25 | 1.5 | 66.9 | 100 | 2.62 |
| 130 | 190 | 25 | 1.5 | 69.5 | 107 | 2.82 |
| 140 | 200 | 25 | 1.5 | 74.8 | 121 | 2.96 |
| 150 | 210 | 25 | 1.5 | 76.8 | 128 | 3.16 |
| 150 | 230 | 30 | 1.5 | 100 | 156 | 5.3 |
| 200 | 260 | 25 | 2 | 84.2 | 157 | 4 |
| 200 | 280 | 30 | 2 | 114 | 200 | 6.7 |
| 200 | 295 | 35 | 2 | 151 | 252 | 9.58 |
| 250 | 310 | 25 | 2.5 | 69.3 | 150 | 4.97 |
| 250 | 330 | 30 | 2.5 | 126 | 244 | 8.1 |
| 250 | 355 | 40 | 2.5 | 195 | 348 | 14.8 |
| 300 | 360 | 25 | 2.5 | 76.3 | 178 | 5.88 |
| 300 | 395 | 35 | 2.5 | 183 | 367 | 13.4 |
| 300 | 405 | 40 | 2.5 | 212 | 409 | 17.2 |
| 400 | 480 | 35 | 2.5 | 156 | 370 | 14.5 |
| 400 | 510 | 40 | 2.5 | 241 | 531 | 23.5 |
| 400 | 580 | 70 | 2.5 | 470 | 811 | 72.4 |
| 500 | 600 | 40 | 2.5 | 239 | 607 | 26 |
| 500 | 625 | 50 | 2.5 | 267 | 653 | 41.7 |
| 500 | 680 | 70 | 2.5 | 536 | 1020 | 86.1 |
| 600 | 700 | 40 | 3 | 264 | 721 | 30.6 |
|
