thrust ball bearings

Thrust ball bearing
Composition: Thrust ball bearing are make of shaft washer, house washer and ball&cage component.
The washer which matching with the shaft called shaft washer, and the washer matching with shell called house washer.
Type: According to stress, thrust ball bearing can be divided into one-way and two-way thrust ball bearing
One-way thrust ball bearing, can endure one-way axial load.
Two-way thrust ball bearing, can endure two-way axial load. The shaft washer matching to shaft, and mounting face of house washer appear spherical, the bearing can be adjustment to reduce the installation error.
Thrust ball bearing can not endure radial load,and limited speed is low.
Purpose: Only use for the machine which bear one side axial load and low speed. Such as crane hook, vertical pump, vertical centrifuge, jack, low-speed reducer. The shaft washer, house washer and roller element are separate, can be mounting separately.

Request a Quote Consultation

Model	Old Model
51130	8130
51230	8230
51330	8330
51430	8430
-	8730
51132	8132
51232	8232
51332	8332
51134	8134
51234	8234
51334	8334
51136	8136
51236	8236
51336	8336
51138	8138
51238	8238
51338	8338
51140	8140
51240	8240
51340	8340
51440	8440
51144	8144
51244	8244
-	708744
-	8764
51148	8148
51248	8248
51348	8348
51948	8948
-	BY10012

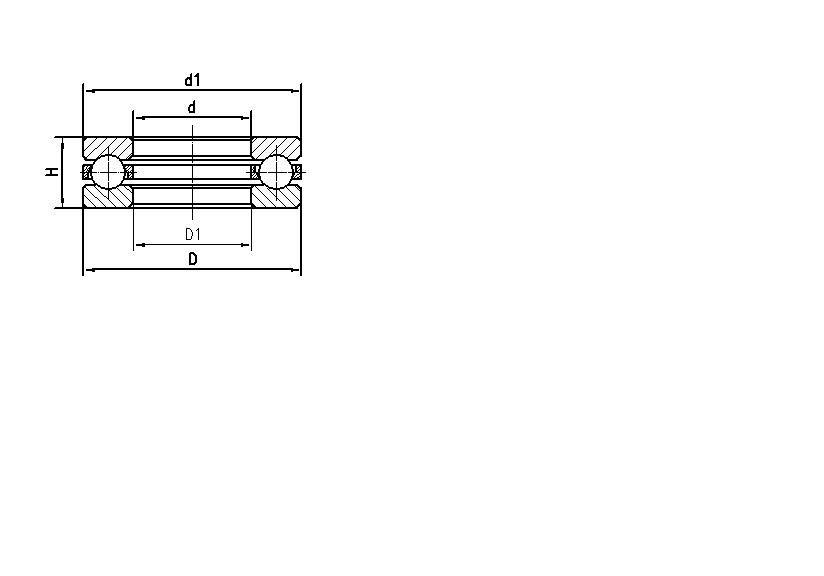

Boundary dimensions (mm)												Basic load ratings (KN)		Limiting speed (r/min)		Weight (KG)
d	d1min	D	D1max	H	H1	D2	D3	C	R	S	Rsmin	dyc_Cr	stc_Cor	Old_spec	Designations	Weight (KG)
150	188	190	152	31	-	-	-	-	-	-	1	115	359	1200	1700	2.16
150	212	215	153	50	-	-	-	-	-	-	1.5	245	585	900	1300	6.07
150	245	250	54	80	-	-	-	-	-	-	2.1	432	1012	670	900	15.2
150	295	300	154	120	-	-	-	-	-	-	4	518	1480	500	670	38.7
150	200	200	150.3	35	-	-	-	-	-	-	2.1	126	460	1100	1600	3.15
160	198	200	162	31	-	-	-	-	-	-	1	93	399	1200	1700	2.38
160	222	225	163	51	-	-	-	-	-	-	1.5	257	660	850	1200	6.75
160	265	270	164	87	-	-	-	-	-	-	3	427	1026	630	850	19.2
170	213	215	172	34	-	-	-	-	-	-	1.1	130	430	1100	1600	3.1
170	237	240	173	55	-	-	-	-	-	-	1.5	280	744	800	1100	7.5
170	275	280	174	87	-	-	-	-	-	-	3	363	1268	600	850	19.9
180	222	225	183	34	-	-	-	-	-	-	1.1	155	516	1000	1500	3.13
180	247	250	183	56	-	-	-	-	-	-	1.5	294	826	800	1100	8.8
180	295	300	184	95	-	-	-	-	-	-	3	550	1450	560	750	28.4
190	237	240	193	37	-	-	-	-	-	-	1.1	175	573	950	1400	8.16
190	267	270	194	62	-	-	-	-	-	-	2	358	1020	750	1000	11.7
190	315	320	195	105	-	-	-	-	-	-	4	607	1654	480	630	34.5
200	247	250	203	37	-	-	-	-	-	-	1.1	185	627	950	1400	4.2
200	277	280	204	62	-	-	-	-	-	-	2	352	1028	750	1000	11
200	355	340	205	110	-	-	-	-	-	-	4	661	1864	480	630	40.8
200	395	400	205	155	-	-	-	-	-	-	5	1000	2610	400	530	91.3
220	267	270	223	37	-	-	-	-	-	-	1.1	183	652	51144	1300	9.23
220	297	300	224	63	-	-	-	-	-	-	2	367	1147	51244	950	13.2
220	300	300	220.5	93.75	-	-	-	-	-	-	2	307	1304	-	900	19.8
230	300	300	230.3	53.4	-	-	-	-	-	-	2.1	203	834	-	900	9.47
240	297	300	243	45	-	-	-	-	-	-	1.5	268	588	800	1100	7.75
240	335	340	340	78	-	-	-	-	-	-	2.1	450	1486	650	860	22.3
240	375	380	380	112	-	-	-	-	-	-	4	535	2224	500	700	49.6
240	340	340	340	70	-	-	-	-	-	-	2.5	325	1390	600	800	19.5
254	317.5	317.5	254	38.1	-	-	-	-	-	-	1.5	164	611	600	800	7.69

FisetPre1 2 Next Last
